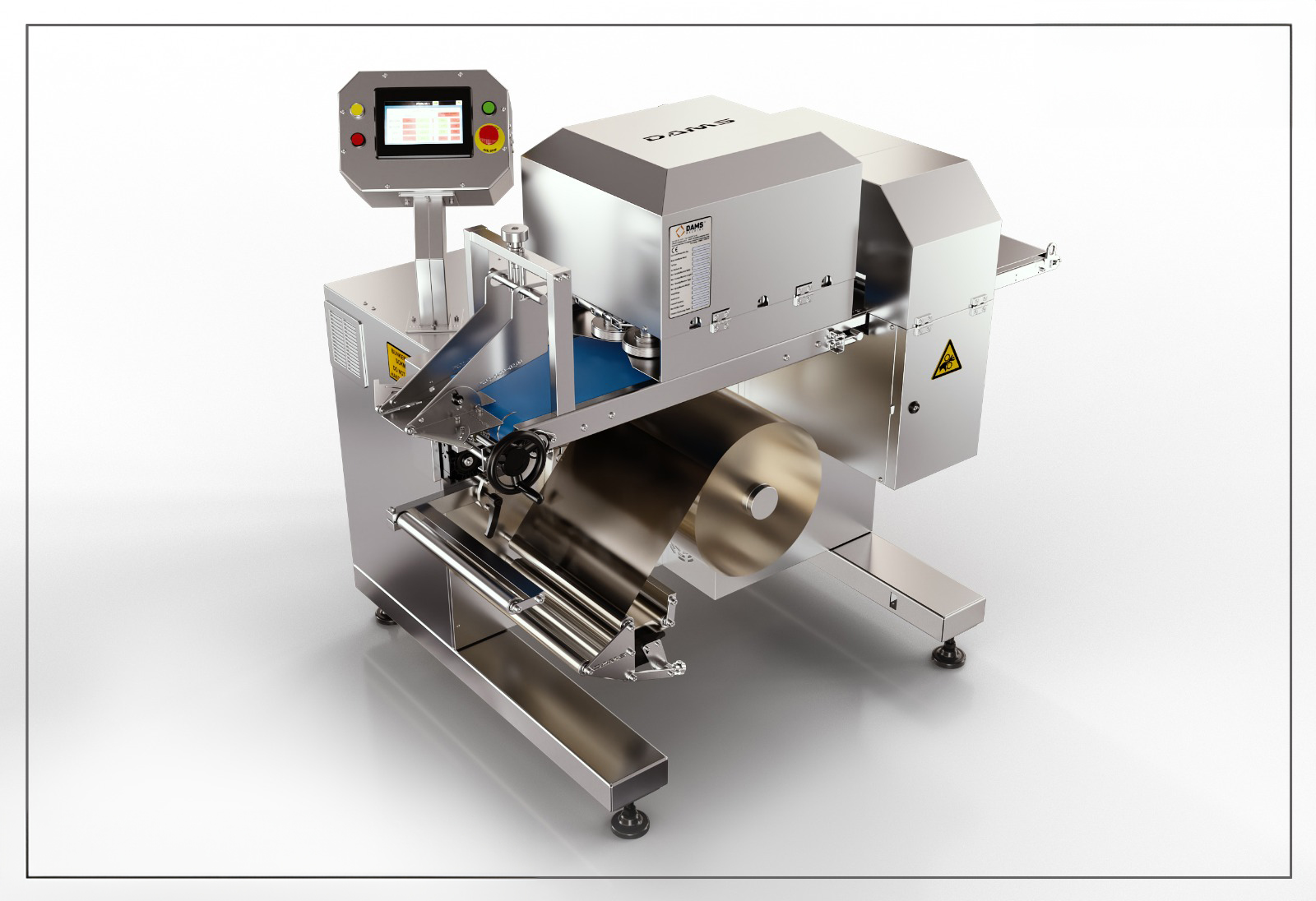

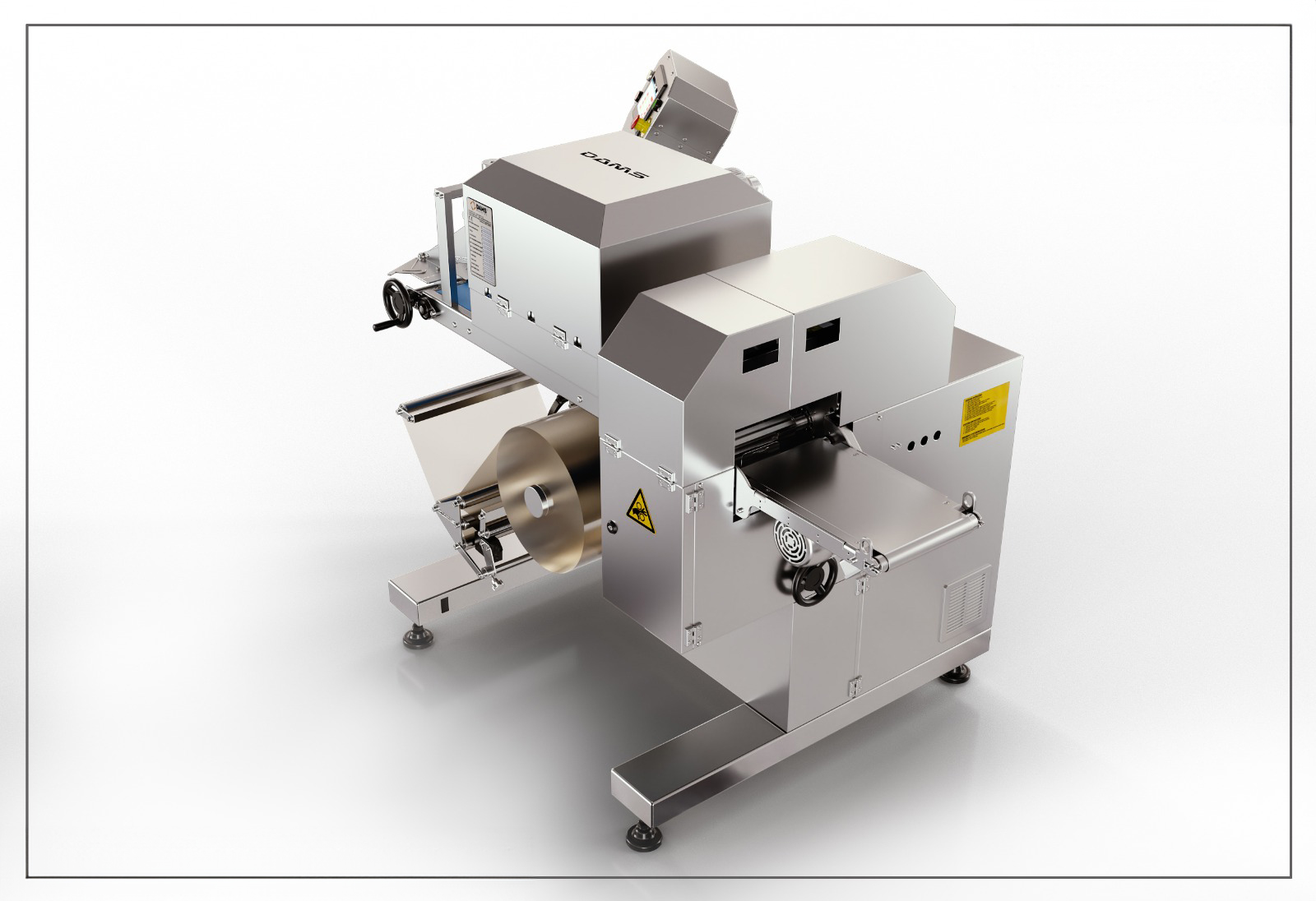

DAMS Reverse Table Packaging Machine DTMP-50
MACHINE FEATURES
| CAPACITY MAX. | 120 pcs/min. |
| MACHINE WIDTH | 1070 mm |
| MACHINE LENGTH | 1730 mm |
| MACHINE HEIGHT | 1400 mm |
| MACHINE WEIGHT | 900 Kg |
| PACKAGE WIDTH | 20-140 mm |
| PACK LENGTH | 100-250 mm |
| PACKAGE HEIGHT | 20-60 mm |
| MAX. COIL WIDTH | 500 mm |
| MAX. CELOPHON COIL DIAMETER | 350 mm |
| COIL INSIDE DIAMETER | 3" |
TECHNICIAL SPECIFICATIONS
| MAX. POWER | 3 kW |
| VOLTAGE | 380 V |
| MAX. CURRENT | 10 A |
| CONTROL | PLC-Touch Screen |
| Compressor Air Requirement | 5-6 Bar |
